Graphite Exothermic Welding Mold with High Density and Flexural Strength of 39-92 Mpa

Name: Graphite Exothermic Welding Mold with High Density and Flexural Strength of 3992 Mpa
Brand: Zion
Price: 0.50 USD

Quality Graphite Exothermic Welding Mold with High Density and Flexural Strength of 39-92 Mpa wholesale

Application : Metallurgical industry

Technique : Die Molded

Resistance (μΩ.m) : 7.9-17.1 μΩm

Bulk Density (g/cm³ ) : 1.62-1.98g/cm3

Porosity (%) : 0.1mm

Place of Origin : Shanghai, China

Brand Name : Zion

Model Number : graphite mold

Name : graphite molds

Material 2 : High purity, high strength

Sample : available

Compressive strength : 78-200 Mpa

Flexural strength : 39-92 Mpa

Tensile strength : 25-70 Mpa

Machining : by CNC center

Ash Content : 0.1% max

Material : hHigh Density Exothermic Graphite Welding Mold / Mould

Certification : ISO9001

Packaging Details : Carton or wooden case, or standard export package , or as per yours

Port : Shanghai, Ningbo,Lianyungang

Supply Ability : 1000 Ton/Tons per Year

MOQ : 2 sets

Price : $0.50 - $5.00/sets

Contact Now

Product Description

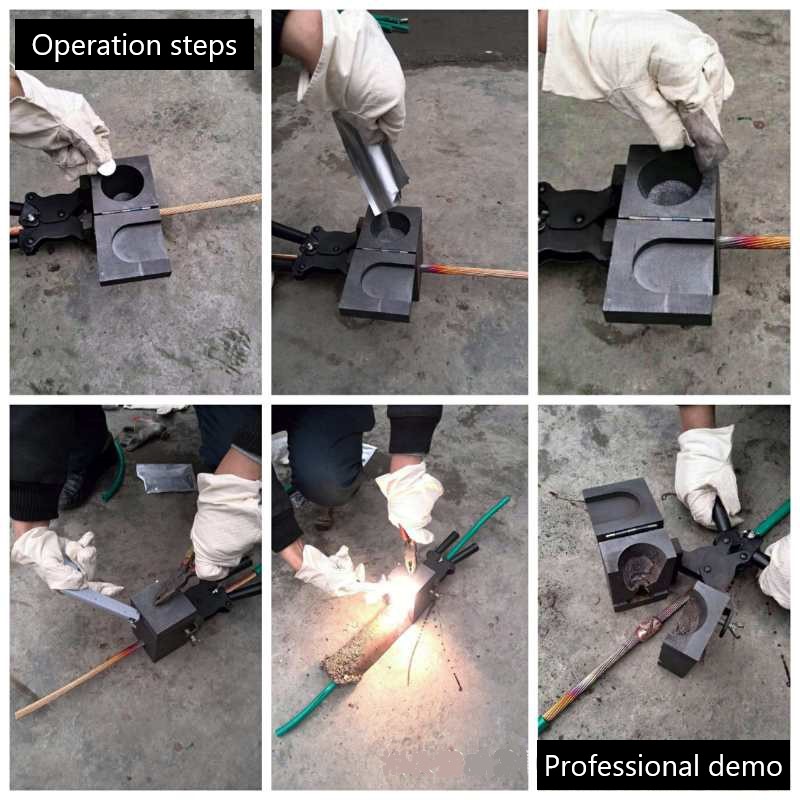

Operation Instruction

l. Check to ensure the graphite mold and conductor is clean ,no residue before making the connection 2. Use a propane torch to dry wire conductors and remove remaining cleaning residue, solvent, or water before making the connection. 3.Close the graphite mold lid before ignition ,and close the lid tightly 4. Insert the conductors and position them for the connection.Ensure them in the center of cavity. 5. Keep the irrelevant personnel 1.5M away when welding， Keep the inflammable goods 1-2M away when welding 6.The operator must be equipped thermal barrier glove， Don’t face to the mould opening when welding 7.The operator keep 1.5M away mould is must after ignition， Don’t touch the mould and connected parts directly after welding 8.Open the mould and take the joint out with wrench 10-20S later after reaction . Insulate the joint after the conductor cooling completely .

Graphite Exothermic Welding Mold with High Density and Flexural Strength of 39-92 Mpa

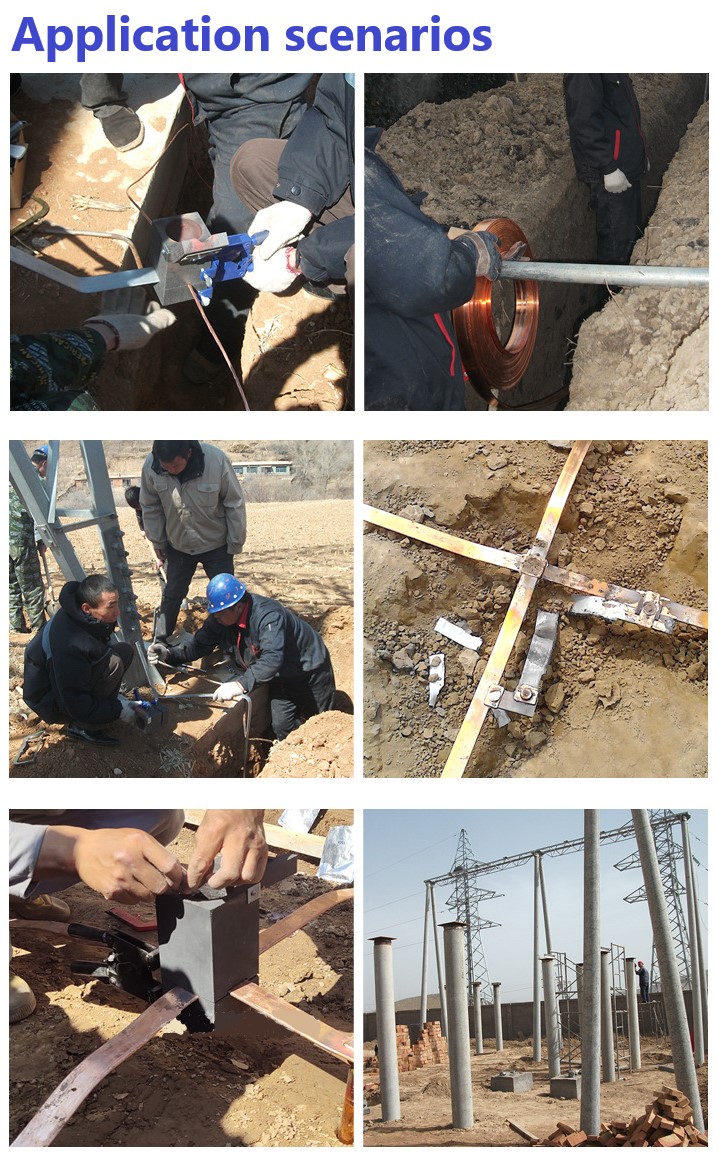

• Lightning protection grounding and surge protection. • Electrical equipment grounding engineering treatment. • Petrochemical engineering construction. • Railway, highway, airport construction. • Intelligent building construction. • Cathodic corrosion protection.

Company Description

Henan Zion New Material Co., Ltd. is an enterprise specializing in the production and sales of graphite products and new industrial materials. The main products are: graphite electrodes, graphite crucibles, graphite molds, graphite plates, graphite rods, high-purity graphite, etc. We have advanced graphite processing equipment and superb production technology, with CNC milling machines, CNC lathes, large sawing machines, surface grinders and so on. Various difficult graphite products can be processed according to customer requirements.

Using high-purity and high-quality graphite materials, we provide high-quality and competitive products for domestic and foreign customers.

Packing and Delivery

FAQ

1.When can i get the price?
We usually quote within 24 hours after getting your detailed requirements,like size,
quantity etc. .If it is an urgent order, you can call us directly.

2. Do you provide samples?
Yes, samples are available for you to check our quality.
Samples delivery time will be about 3-10 days.

3.What about the lead time for mass product?
The lead time is based on the quantity,about 7-12days.For graphite product,apply
Dual-use items license need about 15-20working days.

4.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.
Besides that, we can also shipping by Air and Express.

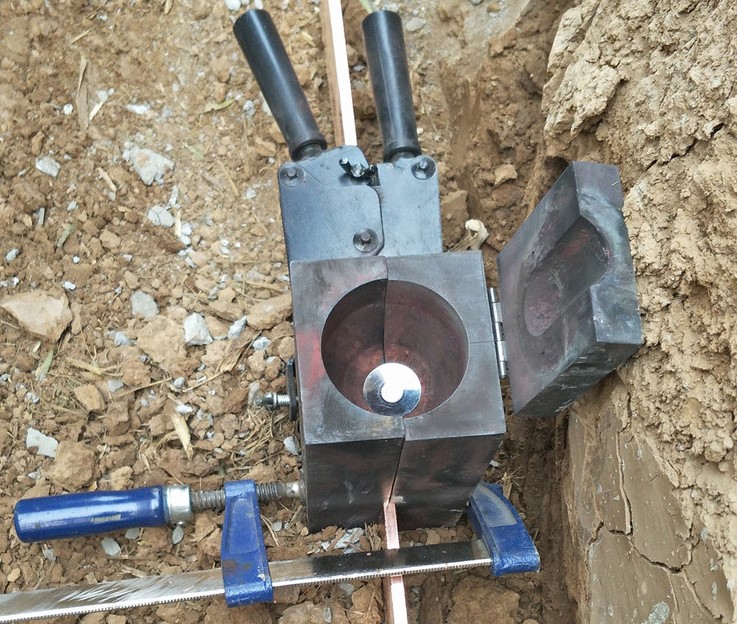

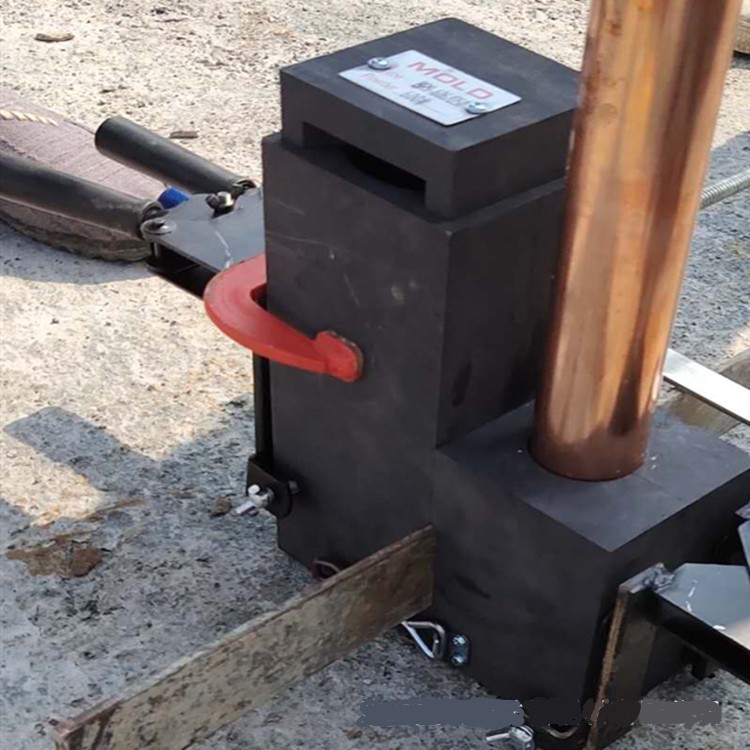

Graphite Exothermic Welding Mold with High Density and Flexural Strength of 39-92 Mpa Images
