Die Molded Graphite Parts for Metal Melting High Compressive Strength and Reliability

Name: Die Molded Graphite Parts for Metal Melting High Compressive Strength and Reliability
Brand: Zion
Price: 1.00 USD

Quality Die Molded Graphite Parts for Metal Melting High Compressive Strength and Reliability wholesale

Application : Metallurgical industry

Technique : Die Molded

Resistance (μΩ.m) : 7.9-17.1 μΩm

Bulk Density (g/cm³ ) : 1.62-1.98g/cm3

Porosity (%) : 0.1mm

Place of Origin : Shanghai, China

Brand Name : Zion

Model Number : graphite mold

Name : high quality Glass Blowing Carbon Graphite Molds

Material 2 : High purity, high strength

Sample : available

Compressive strength : 78-200 Mpa

Flexural strength : 39-92 Mpa

Tensile strength : 25-70 Mpa

Key words : custom graphite parts

Compressive acid : strong/weak acid

Type : High Strength

Packaging Details : Carton or wooden case, or standard export package , or as per yours

Port : Shanghai, Ningbo,Lianyungang

Supply Ability : 1000 Ton/Tons per Year

MOQ : 30 pieces

Price : $1.00 - $8.90/pieces

Contact Now

Product Description

Graphite ingot mold From the dimension to material selection, our company keeps providing the best for customers. As the leading manufacturer, our graphite products have been widely applied in metallurgy, machinery, electronics and chemical industry, etc. Our graphite mold is manufactured by advanced production technique and equipment with characteristics of good conductivity, high temperature resistant, acid and alkali resistance, corrosion resistance, great resistance to thermal and mechanical shock, and easy processing characteristics.

Die Molded Graphite Parts for Metal Melting High Compressive Strength and Reliability

Main Features

•High purity, high strength, high density
•High mechanical strength
•Strong chemical stability
•Excellent thermal shock resistance, electrical conductivity, thermal conductivity
•Good wear resistance and long service life

Name	Type No.	Density g/cm3	Specific resistance (μΩm)	Flexural strength (Mpa)	Compressive strength (Mpa)	Ash Max (%)	Particle Max	Remark
Electrode Graphite	RP	≥1.55- 1.75	7.5-8.5	≥8.5	≥20	≤0.3	≤8-10mm	Can choose
Vibration Graphite	BGSK	≥	7-9	≥13.5	≥35	≤0.3	≤0.8mm	2 Impregnation, 3 bake
Vibration Graphite	BTSK	≥1.62	7-9	≥9	≥22	≤0.3	≤2mm	1 Impregnation, 2 bake
Die mold graphite	BF2-3	≥1.8	10-13	≥40	≥60	≤0.1	≤0.043mm	2 Impregnation, 3 bake
Die mold graphite	BF3-4	≥1.85	10-13	≥47	≥75	≤0.05	≤0.043mm	3 Impregnation, 4 bake
Extruded Graphite	BFJ	≥1.68	7.5-8.5	≥19	≥38	≤0.3	≤0.2mm	1 Impregnation, 2 bake
Isostatic graphite	BFD	≥1.82	11-13	≥38	≥85	≤0.1	2μm,6μm,8μm,15μm,etc	2 Impregnation, 3 bake

Company Description

Henan Zion New Material Co., Ltd. is an enterprise specializing in the production and sales of graphite products and new industrial materials. The main products are: graphite electrodes, graphite crucibles, graphite molds, graphite plates, graphite rods, high-purity graphite, etc. We have advanced graphite processing equipment and superb production technology, with CNC milling machines, CNC lathes, large sawing machines, surface grinders and so on. Various difficult graphite products can be processed according to customer requirements.

Using high-purity and high-quality graphite materials, we provide high-quality and competitive products for domestic and foreign customers.

Packing and Delivery

FAQ

1.When can i get the price?
We usually quote within 24 hours after getting your detailed requirements,like size,
quantity etc. .If it is an urgent order, you can call us directly.

2. Do you provide samples?
Yes, samples are available for you to check our quality.
Samples delivery time will be about 3-10 days.

3.What about the lead time for mass product?
The lead time is based on the quantity,about 7-12days.For graphite product,apply
Dual-use items license need about 15-20working days.

4.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.
Besides that, we can also shipping by Air and Express.

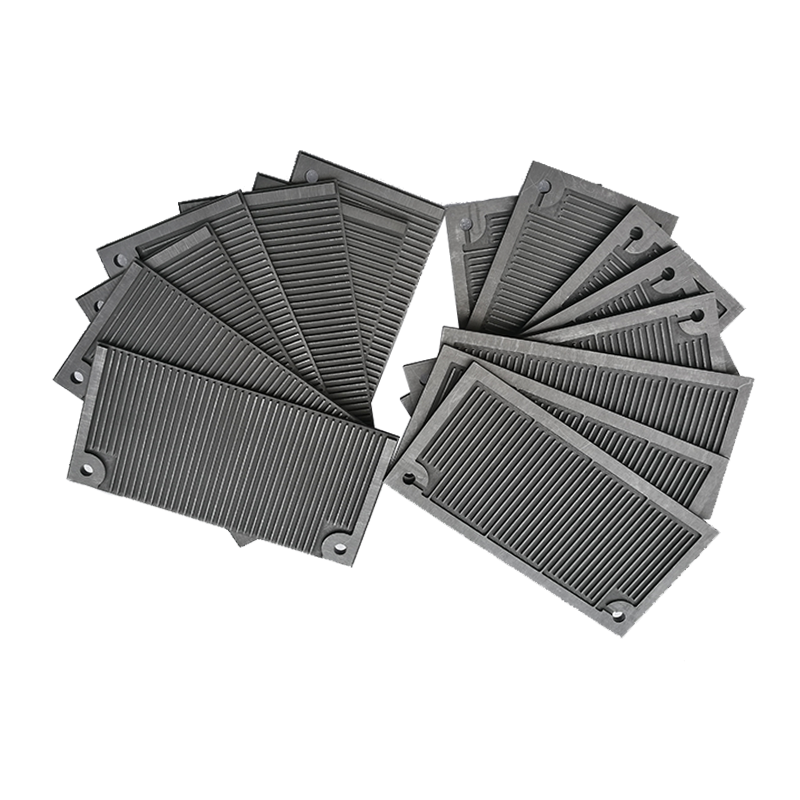

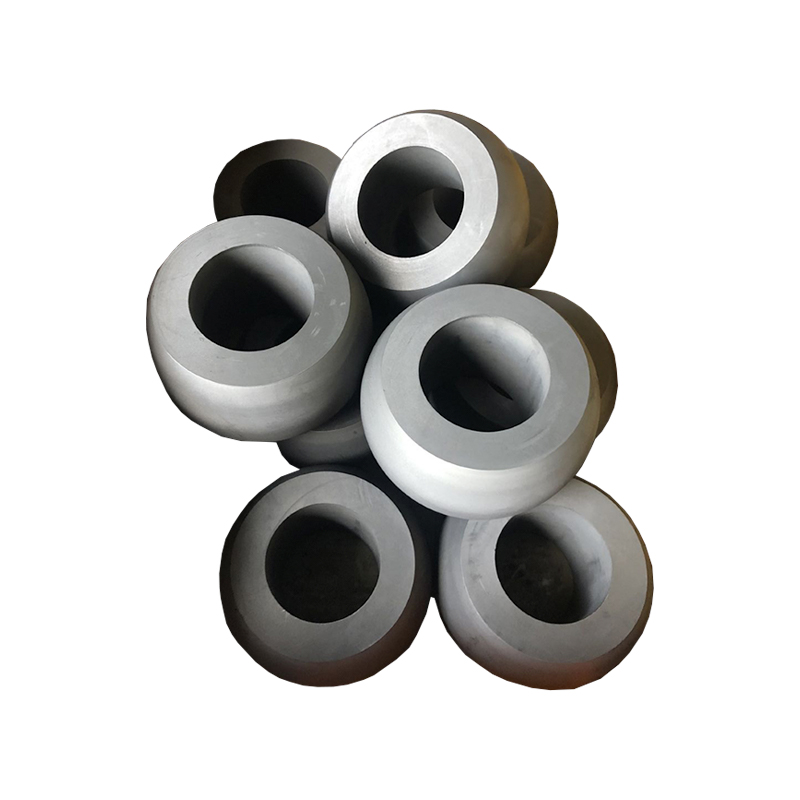

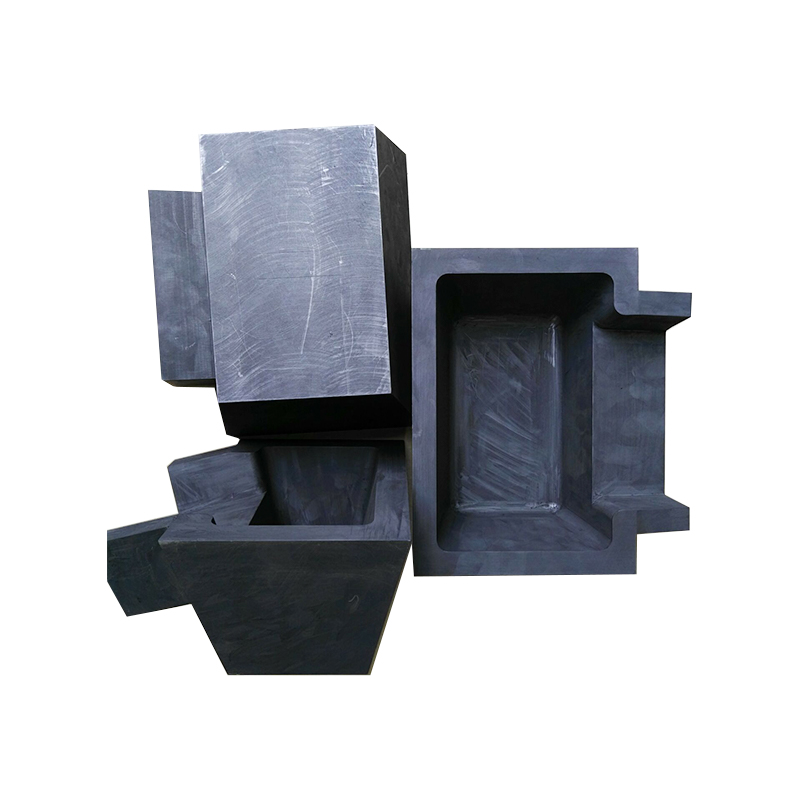

Die Molded Graphite Parts for Metal Melting High Compressive Strength and Reliability Images
