Chemical Composition High Temperature Resistance Graphite Boat for Impregnation Vessel

Name: Chemical Composition High Temperature Resistance Graphite Boat for Impregnation Vessel
Brand: LFYGY
Price: 1.00 USD

Quality Chemical Composition High Temperature Resistance Graphite Boat for Impregnation Vessel wholesale

Place of Origin : Henan, China

Brand Name : LFYGY

Model Number : graphite box

Application : industrial

Chemical Composition : Graphite Materials

Product name : vacuum graphite impregnation vessel

Material : High Pure Graphite Materials

application : vacuum furance parts

Size : custom

Key Words : graphite boat

Ash content : 0.3%~ 10ppm different grades available

Flexural Strength : 10~50Mpa different grades available

Max grain siz : 0.010mm ~4mm different grades available

dia/width/height : 10~1200mm

Price : $1.00 - $10.00/pieces

Contact Now

Product Details

Size and Shape: Customized production according to the size or drawings.

Graphite Materials:
Graphite boxes are usually machined from isostatic graphite, molded graphite or fine grain size graphite material.
If you not sure of the appropriate grade, we can offer suggestions for choosing appropriate and cost-effective grade according to customers' specific application (working condition) based on rich experiences in graphite applications.

Graphite Boxes Specialty：
1. High purity, without contamination to treated products
2. Resistance to high temperature of 2800 C degree in protection atmosphere or vacuum
3. Surface coating treatment is applied in order to improve its service life and carburization.

Graphite Boxes Applications:

1.Graphite saggers and boxes for sintering hard alloys products in High Temperature Furnaces

2.Graphite boxes as loaders of products in various sintering furnaces like roller kiln, pushed slab kiln, belt sintering furnaces etc.

Accept customize any shape items , ODM OEM is available !!

Just provide the detail size or drawings for us ,we can quote you !!!

Chemical Composition High Temperature Resistance Graphite Boat for Impregnation Vessel

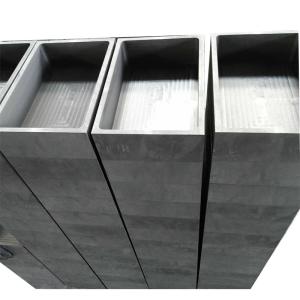

Big grpahite box

Various shape grahite box

Graphite box with lid

Square shape graphite crucible ,boat ,graphite box.

Square shape graphite crucible box with handle

Product Advantage

1.The raw material is high-purity isostatic graphite, which is resistant to oxidation, high temperature resistance and long life

2.Fine machining , reasonable design, non-stick slag, not easy to crack

3. Does not pollute metal, conducts electricity well, heats up quickly

Physical And Chemical Index
Model	WX-4	WX-5	WX-6	WX-7	WX-8	Red-5	Red-7	Red-8
Bulk Density (g/cm³)	1.75	1.85	1.90	1.82	1.90	1.68	1.85	1.90
Resistivity (Ωm)	8~11	8~10	8~9	11~13	11~13	13~15	11~13	11~13
Thermal Conductivity (100℃) W/m.k	110~120	130~140	130~140	110~120	110~120	80~100	100~120	110~120
Thermal expansion coefficient(Room temp-600℃)10-6/℃	5.46	4.75	4.8	5.8	5.85	5.8	5.9	5.85
Shore hardness (HSD)	42	48	53	65	70	60	68	72
Flexural strength (Mpa)	38	46	55	51	60	38	62	70
Compressive strength (Mpa)	65	85	95	115	135	80	135	160
Elastic Modulus(Gpa)	9	11.8	12	12	13	8.8	12	13
Porosity(%)	17	13	11	12	11	18	12	11
Ash(PPM)	500	500	500	500	500	500	500	500
Purified ash (PPM)	50	50	50	50	50	50	50	50
Grain size (um)	13~15	13~15	8~10	8~10	8~10	8~10	7	5

Packing and Delivery

Other Graphite Products Display

We can produce various graphite items, like graphite crucible, furance heaters , graphite box, Fuel Cell Bipolar Plates, Graphite mold for digestion instrument, welding mould , Graphite bearings, graphite sliders, graphite pots, graphite screws, graphite scrapers, graphite nozzles, graphite products for various non-ferrous metallurgy, kilns, glass and other industries.

Contact us if you need any graphite items !!!

Company Description

Henan Zion New Material Co., Ltd. is an enterprise specializing in the production and sales of graphite products and new industrial materials. The main products are: graphite rods , graphite crucibles, graphite molds, graphite plates, graphite rods, high-purity graphite, etc. We have advanced graphite processing equipment and superb production technology, with CNC milling machines, CNC lathes, large sawing machines, surface grinders and so on. Various difficult graphite products can be processed according to customer requirements.

FAQ

1.When can i get the price?
We usually quote within 24 hours after getting your detailed requirements,like size,
quantity etc. .If it is an urgent order, you can call us directly.

2. Do you provide samples?
Yes, samples are available for you to check our quality.
Samples delivery time will be about 2-5 days.

3.What about the lead time for mass product?
The lead time is based on the quantity,about 5-7 days.For graphite product,apply
Dual-use items license need about 15-20working days.

4.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.
Besides that, we can also shipping by Air and Express.

Do you know how do we produce the graphite crucible?

1. We will select the best material according to your application, such as use, working temperature, in vacuum or air and so on.

2. We will confirm your size or drawing and machining precision.

3. We will send the drawing to our technicist and worker

4. We will use the numerically-controlled machine tool to produce.

5. We will check the quality and size.

Chemical Composition High Temperature Resistance Graphite Boat for Impregnation Vessel Images
